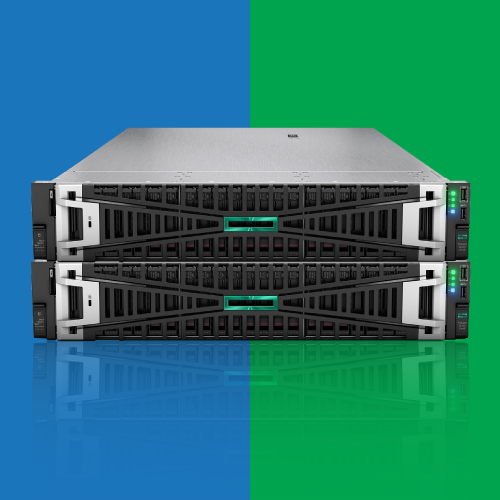

Do you need a high-density, mission-critical server to support data center workloads? The HPE ProLiant DL560 Gen11 Server is a dense 2U four-socket server with a focus on scalability and performance. It is powered by the latest Intel Xeon Scalable Gen4 processors, DDR5 memory, PCIe Gen 5 expansion slots, and flexible NVMe storage options. The result you get is enterprise-class reliability, security, high compute power and advanced capabilities to run your databases, virtualization, and in-memory workloads on a stable and secure platform.

Key features of ProLiant DL560 Gen11 Server

Scalable Intel Xeon Processing Architecture

The DL560 Gen 11 comes with the Intel Xeon processor family for 4th-generation processors in a 4-CPU configuration. Each Gen 4 CPU provides 60 cores and together, these CPUs deliver massive parallel processing, high compute density, and the ability to scale your workloads for mission-critical data center deployments and large virtualization environments.

Large DDR5 Memory Capacity

The DL560 server can accommodate 4TB per CPU and 16TB of total DDR5 RDIMM memory across a maximum of 64 DIMM slots at frequencies up to 4800 MT/s. Memory on the DL560 is protected with ECC feature, while the multi-channel architecture allows for maximum bandwidth and minimized latencies for in-memory computing and analytical workloads.

Benefits of DL560 Gen11 server

Strong Architecture for Enterprise Workloads & Databases

The HPE DL560 Gen11 supports up to 24 SFF drives and numerous NVMe, SAS, and SATA HDD/SSD configurations at high density, according to the specific configuration. HPE Smart Array controllers can be used for RAID, supporting 0/1/5/6/10 levels. In addition, the M.2/NS204i-u boot options are incorporated into the storage architecture to enable easy installation of software-defined storage applications and databases/ERP systems on servers.

PCIe Gen5 Expansion and Networking for Cloud and Virtualization

This server has 6 PCIe Gen5 expansion slots for adding GPUs, NICs, or other devices as needed, facilitating a variety of expansion options for high-throughput, low-latency connectivity for virtualization, private cloud, and in-memory workloads. The server also supports OCP 3.0 and PCIe NIC options for use with 1, 10, 25, or 100GbE Ethernet networks.

Advanced Management, Security, and Power Efficiency Features

DL560 Gen11 can be managed remotely via HPE iLO 6, offering the user the benefits of remote monitoring and lifecycle management. HPE Secure components like Silicon Root of Trust, Secure Boot, and firmware protection ensure a secure foundation for the system built on its architecture, while the optimized airflow design, combined with hot-plug redundant PSUs (800W-1600W), ensures that the server will perform reliably while being scalable for use in HPC and data center environments.

Why choose ServerBasket?

Enterprise-Scale Custom Solutions

ServerBasket allows complete customization for this high-density four-socket (4S) server with regard to required enterprise capabilities, including CPU, DDR5 memory, NVMe/SAS/SATA storage, RAID controllers, network cards, and expansion options; enterprise workloads will be able to align perfectly.

Cost-effective Pricing, Quick Delivery Throughout Kenya

This server is offered at competitive rates for all kinds of businesses. We ensure quick and safe delivery of equipment to help you manage your workflow and deliver products and services effectively.

24 Hour Technical Assistance with a 3-Year Warranty

All of our servers come with a 3-year warranty, including repair and replacement options, along with a 24/7 expert assistant for all pre-sale, installation, and post-sale issues.

Technical Specifications

Specification	Details
Brand	HPE ProLiant DL560 Gen11
Processor Configuration	Supports 2 or 4 processors based on 4th Gen Intel Xeon Scalable architecture
Processing Performance	Handles demanding workloads with up to 60 cores per CPU, speeds up to 3.7 GHz, and large L3 cache
Memory	Supports up to 16TB DDR5 HPE SmartMemory
Memory Slots	64 DIMM slots available
Storage	Up to 368.64 TB
Storage Support	Configurable with 8, 16, or 24 SFF drives including SAS, SATA, and NVMe
Storage Controller	Works with HPE Smart Array and MR/SR Gen11 controllers
Form Factor	2U Rack Server
Power Supply	Hot-plug power options from 800W to 2200W with redundancy support
Infrastructure Management	Managed through HPE iLO, Intelligent Provisioning, and OneView
Security Features	Includes TPM 2.0, intrusion alerts, and optional bezel lock
Expansion Slots	Up to 6 PCIe Gen5 slots and 2 OCP 3.0 slots
Network Options	Supports networking from 1Gb to 200Gb via PCIe and OCP adapters
Cooling	Equipped with hot-plug redundant fans and advanced cooling support

Additional information

Brand	HPE
Processor	4th Generation Intel Xeon Scalable Processors
Memory	Up to 16 TB (with 256 GB DDR5 SmartMemory)
Storage	Up to 368.64 TB
Form Factor	2U Rack Server
